4ton Recovery Vehicle Winch Hydraulic Winch for Wrecker
» Main Application
The compact design of PWA040 hydraulic winches allow flexible integration into different vehicles. With this model winches, rescue services can reliably recover vehicles or quickly remove barriers.
In the event of accidents and other critical applications they provide safe and reliable help in difficult situations.
» Performance of Hydraulic Winch
| Main Performance of PWA040 Hydraulic Winch |
| Model | PWA040 |
| Rated line pull (1st layer) | KN / kgs | 40 / 4000 |
| Line speed (1st layer) | m/min | 16 |
| Motor displacement | mL/rev | 80 |
| Oil pressure | MPa | 12 |
| Oil flow | L/min | 15-60 |
| Drum diameter*Bottom diameter*Length(internal) | mm | 88*192*210 |
| Drum capacity | m | 30 |
| Suggest high-intensity wire rope diameter | mm | Φ11 |
| Net weight | kg | 36 |

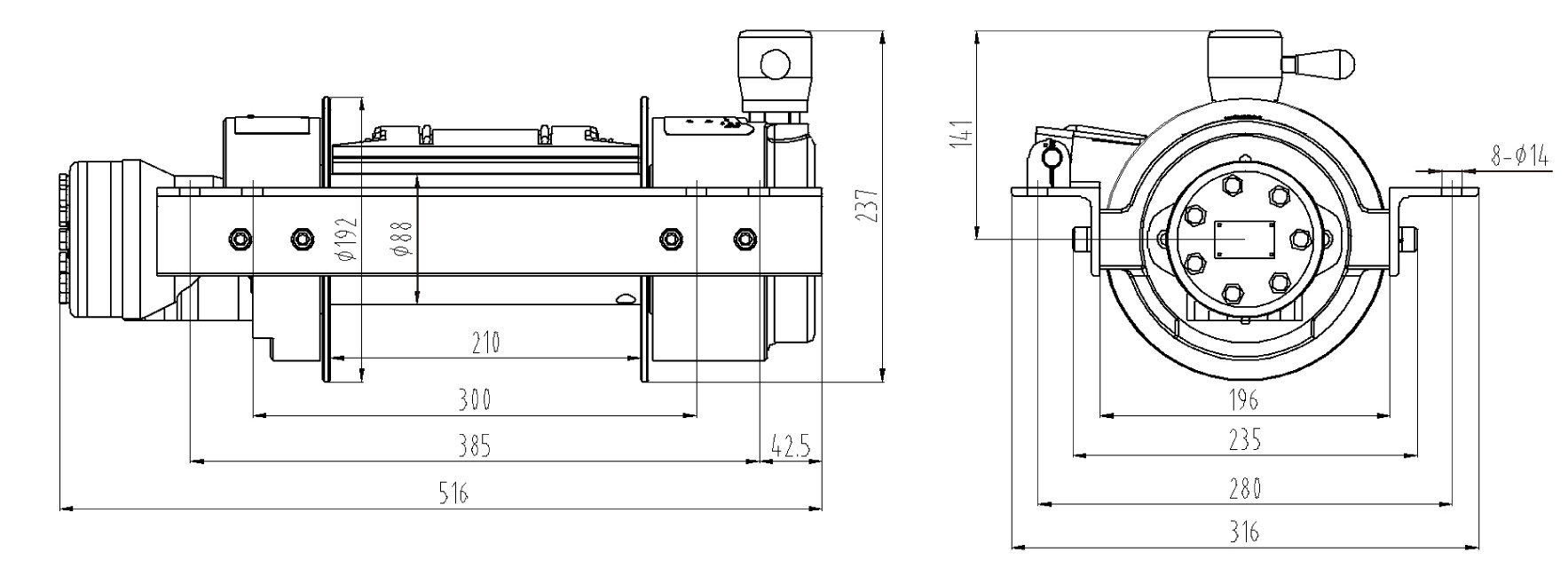

» Product structural drawing
» Features of Hydraulic Winch
1. Constant pulling force and rope speed.
2. Simplified and user-optimized operation.
3. The product is featured by its small size, compact construction and high transmission efficienc.
4. Quality inspection before shipment guarantees reliability and safety in winch use.
5. OEM/ODM are all available.
6. Package: PLYWOOD case, safety for long-distance transportation.
» Company Profile
Jiangyin Zhongxin Engineering Equipment Co.,Ltd designs and manufactures innovative, high quality and highly durable Hydraulic winch for your off-road vehicle, cargo truck, traliers, heavy equipment transporter, tractors,loaders, drilling dig, fire engines and dubollzer etc.
Our company now has a strong R&D team led by a hydraulic expert and professional engineers, your customized requirement can be satisfied.
Our customer and business partners profit from our decades of experience and our close cooperation with international renowned companies and military sectors.
Reach out to us for a complimentary consultation.
